Job "Mazumder battery 1C discharge" status: Finished

Description: Mazumder model validation: discharge at 1C over 3800s, timestep of 1s from 100% SOC. Fixed U_n

Job submitted: Fri, 18 Nov 2022 12:24:22 +0000

Job completed: Fri, 18 Nov 2022 12:24:36 +0000

Number of DAEs: 1900 (FV method)

Total (dis)charge time: 1974 s.

Stopped because the battery voltage reached Vmin = 2.5 V



Simulation result preview:

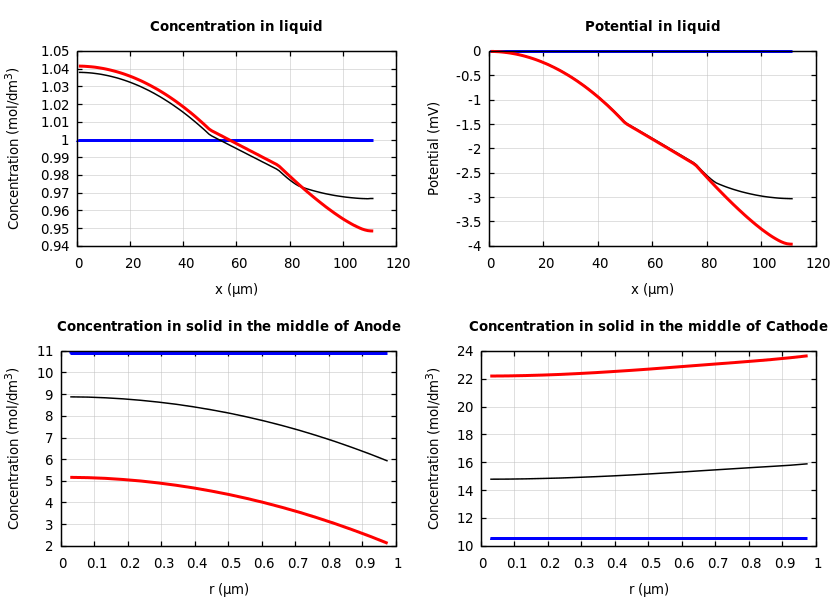

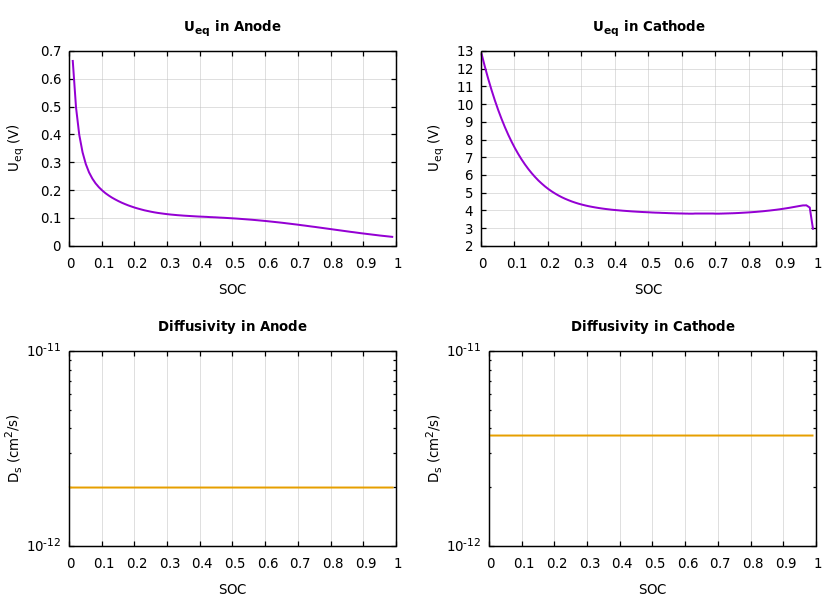

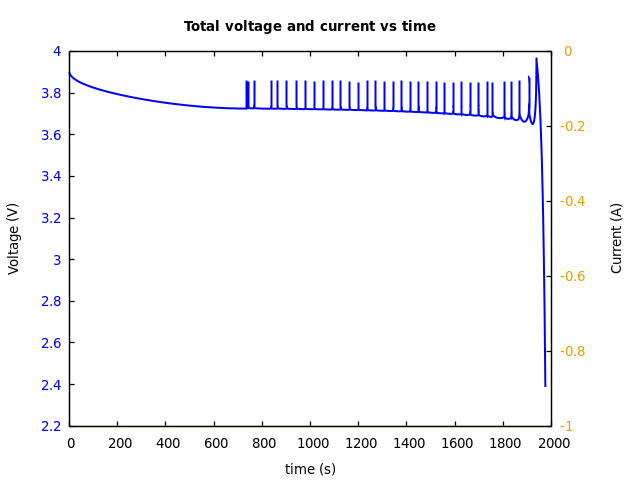

Voltage and currents Concentrations and potentials Parameters


Download all simulation results:

data_and_plt_files.zip




The zip-file contains text data-files with the simulation results (voltages, currents, concentrations of Li ions, potentials) in a plain text format ready to be imported into any third-party post-processing software (e.g. Microsoft Excel, LibreOffice Calc, MATLAB, etc.).

In addition to the data-files, the zip contains text plt-files that can be used to produce publish ready plots in gnuplot.



➠ Review all parameters & Resubmit the simulation

This will create a new instance of the simulation parameters. The current simulation will be unaffected.
