Job "Simulation1" status: Finished

Description: NOTE all anode parameters are in 'cathode' fields because this is a pseudo half cell, i.e. it's a full cell model with an extremely thin 'anode'. it will work for

Job submitted: Tue, 30 Aug 2022 11:29:01 +0100

Job completed: Tue, 30 Aug 2022 11:29:08 +0100

Number of DAEs: 1898 (FV method)

Total (dis)charge time: 3520 s.

Stopped because the battery voltage reached Vmin = 0.02 V



Simulation result preview:

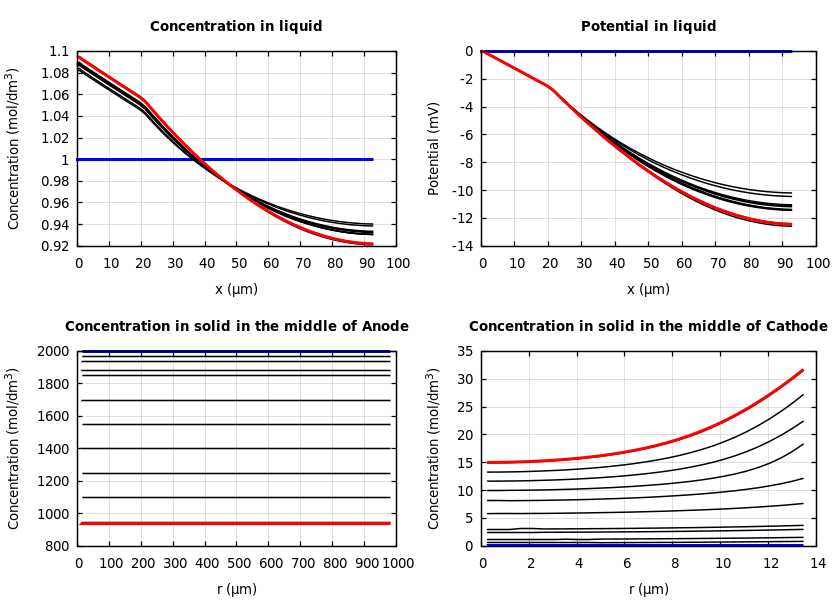

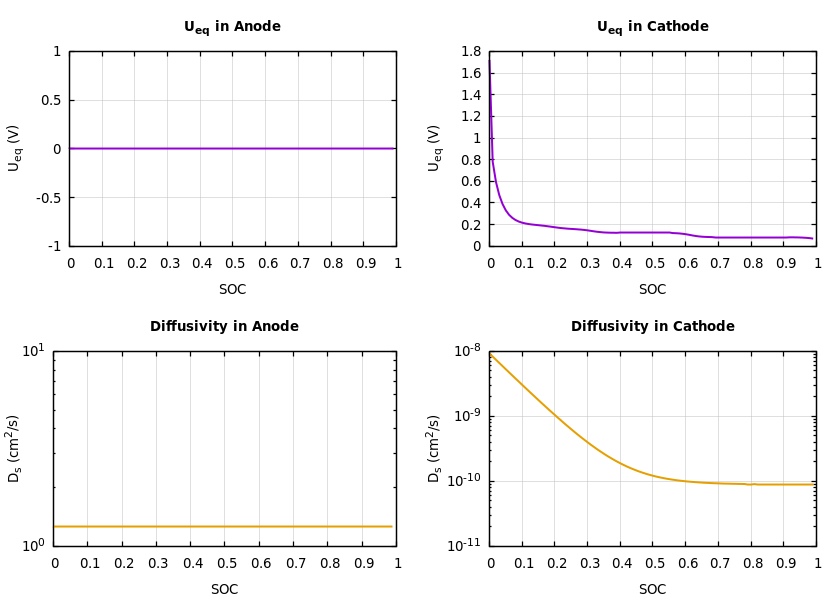

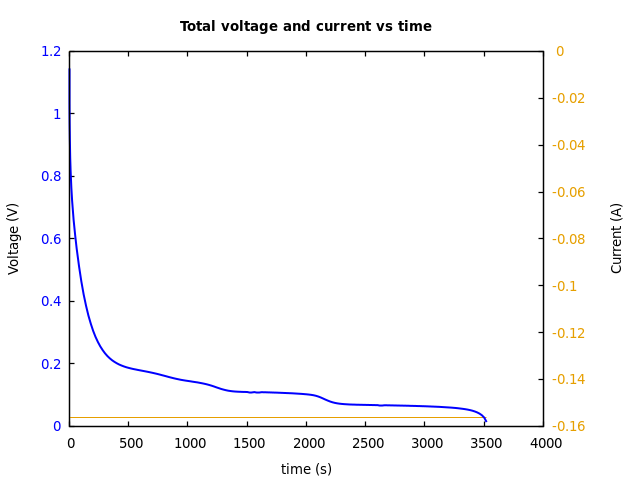

Voltage and currents Concentrations and potentials Parameters


Download all simulation results:

data_and_plt_files.zip




The zip-file contains text data-files with the simulation results (voltages, currents, concentrations of Li ions, potentials) in a plain text format ready to be imported into any third-party post-processing software (e.g. Microsoft Excel, LibreOffice Calc, MATLAB, etc.).

In addition to the data-files, the zip contains text plt-files that can be used to produce publish ready plots in gnuplot.



➠ Review all parameters & Resubmit the simulation

This will create a new instance of the simulation parameters. The current simulation will be unaffected.
