Job "Typical Gr/NCA C/3 discharge" status: Finished

Description: 흑연 양극(에커 등) + 일반적인 니켈 코발트 알루미늄(NCA) 음극

Job submitted: Sun, 06 Jul 2025 16:52:47 +0100

Job completed: Sun, 06 Jul 2025 16:52:56 +0100

Number of DAEs: 5158 (FV method)

Total (dis)charge time: 10218 s.

Stopped because the battery voltage reached Vmin = 2.6 V



Simulation result preview:

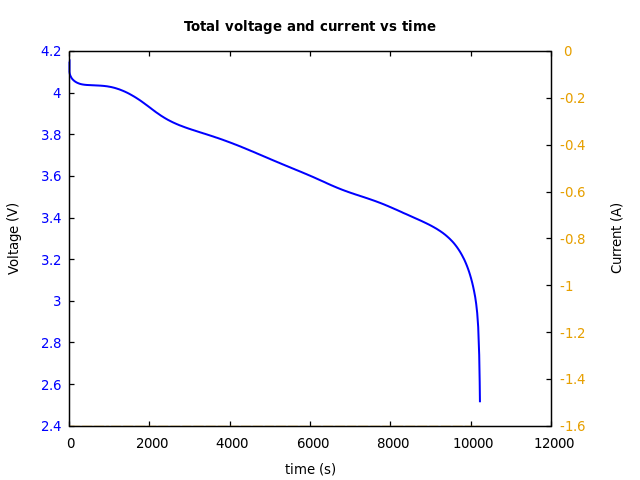

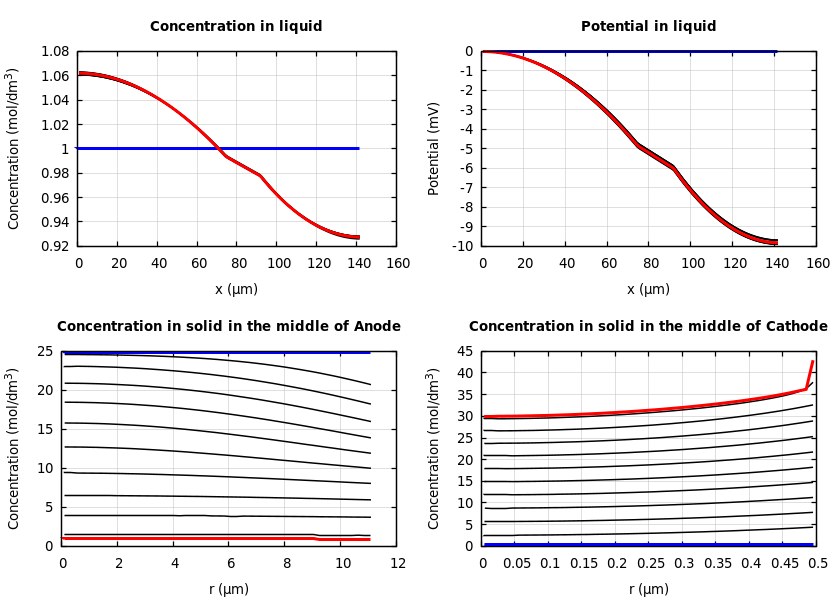

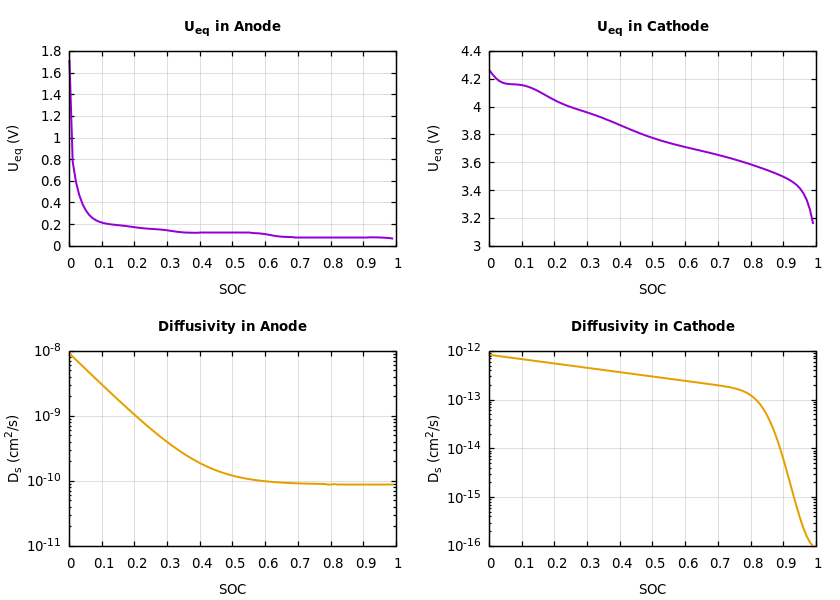

Voltage and currents Concentrations and potentials Parameters


Download all simulation results:

data_and_plt_files.zip




The zip-file contains text data-files with the simulation results (voltages, currents, concentrations of Li ions, potentials) in a plain text format ready to be imported into any third-party post-processing software (e.g. Microsoft Excel, LibreOffice Calc, MATLAB, etc.).

In addition to the data-files, the zip contains text plt-files that can be used to produce publish ready plots in gnuplot.



➠ Review all parameters & Resubmit the simulation

This will create a new instance of the simulation parameters. The current simulation will be unaffected.
