Job "LFP电池" status: Finished

Description: 石墨阳极（Ecker 等人）+ 典型的 LFP 阴极。 1C 放电倍率对应于 1 A。

Job submitted: Thu, 09 Nov 2023 08:31:37 +0000

Job completed: Thu, 09 Nov 2023 08:32:04 +0000

Number of DAEs: 5158 (FV method)

Total (dis)charge time: 3674 s.

Stopped because the battery voltage reached Vmin = 2.7 V



Simulation result preview:

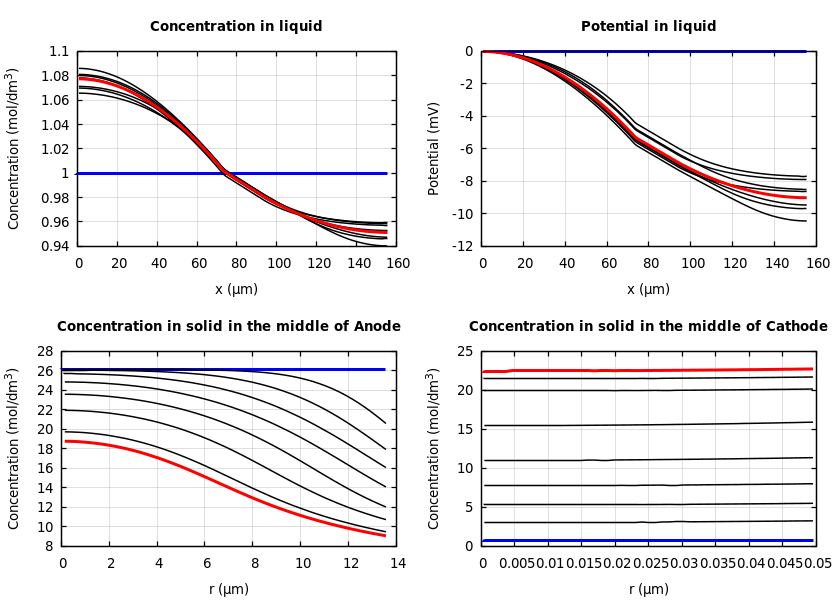

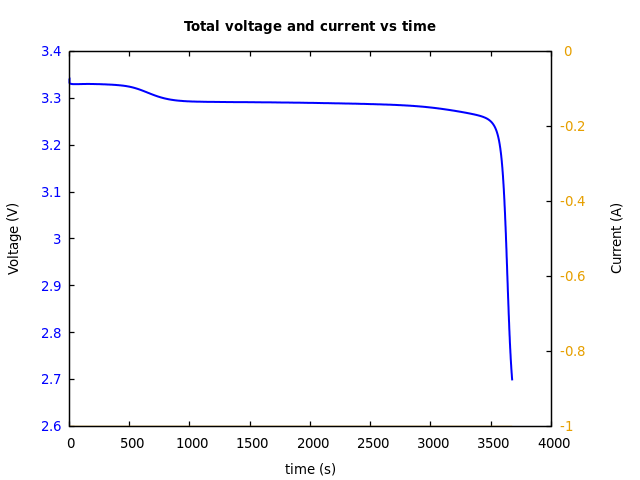

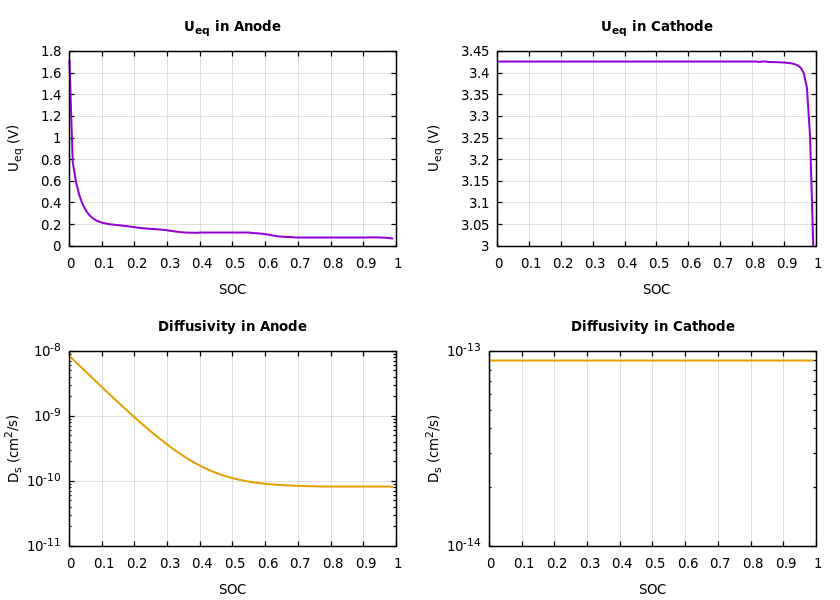

Voltage and currents Concentrations and potentials Parameters


Download all simulation results:

data_and_plt_files.zip




The zip-file contains text data-files with the simulation results (voltages, currents, concentrations of Li ions, potentials) in a plain text format ready to be imported into any third-party post-processing software (e.g. Microsoft Excel, LibreOffice Calc, MATLAB, etc.).

In addition to the data-files, the zip contains text plt-files that can be used to produce publish ready plots in gnuplot.



➠ Review all parameters & Resubmit the simulation

This will create a new instance of the simulation parameters. The current simulation will be unaffected.
