Job "NCA Cathode Half cell [Kick/Relax charge]" status: Finished

Description: typical Nickel Cobalt Aluminium (NCA) Cathode half cell. 2.5 minutes kick with C/10, 1 hour relax. 250 GITT periods.

Job submitted: Thu, 04 Dec 2025 12:36:32 +0000

Job completed: Thu, 04 Dec 2025 14:19:02 +0000

Number of DAEs: 5360 (FE+CV method)

Total (dis)charge time: 918833 s.

Stopped because the battery is fully (dis)charged.



Simulation result preview:

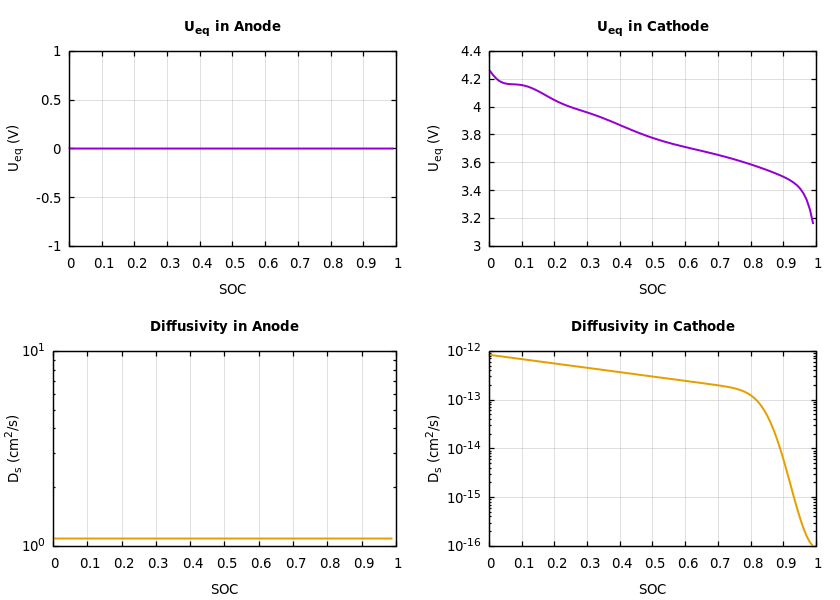

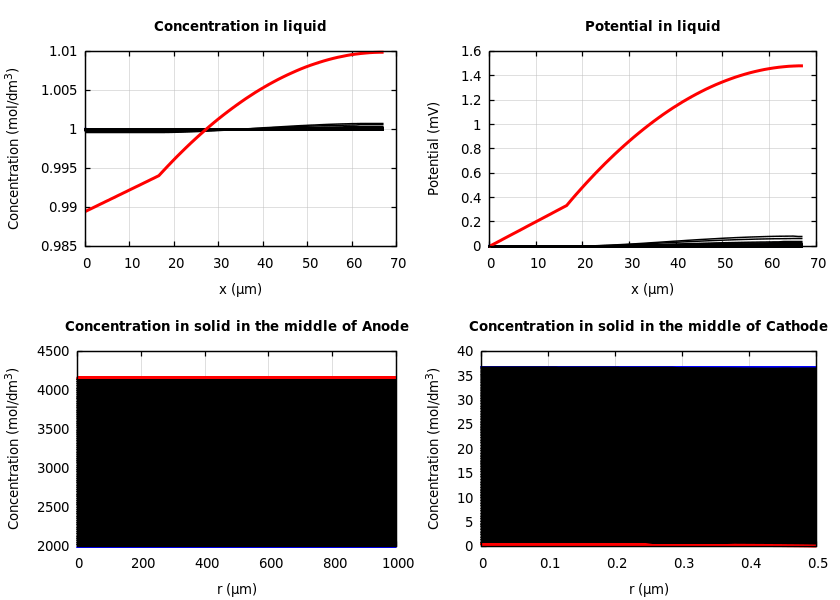

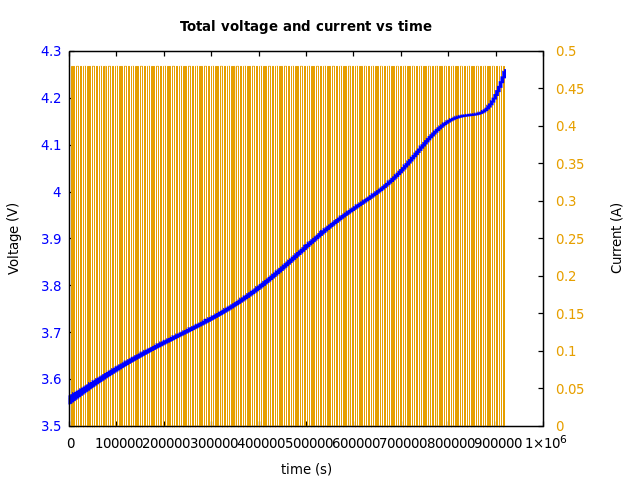

Voltage and currents Concentrations and potentials Parameters


Download all simulation results:

data_and_plt_files.zip




The zip-file contains text data-files with the simulation results (voltages, currents, concentrations of Li ions, potentials) in a plain text format ready to be imported into any third-party post-processing software (e.g. Microsoft Excel, LibreOffice Calc, MATLAB, etc.).

In addition to the data-files, the zip contains text plt-files that can be used to produce publish ready plots in gnuplot.



➠ Review all parameters & Resubmit the simulation

This will create a new instance of the simulation parameters. The current simulation will be unaffected.
