Job "Sim4 Gr/NCA 4.8Ah_LT_Opt2" status: Finished

Description: Graphite Anode (Ecker et al.) + typical Nickel Cobalt Aluminium (NCA) Cathode Optimize Irr. cap. and anode/cathode cap. Low Temperature / 250K with some optimization lower conductivity

Job submitted: Sat, 05 Nov 2022 09:41:09 +0000

Job completed: Sat, 05 Nov 2022 09:41:17 +0000

Number of DAEs: 5158 (FV method)

Total (dis)charge time: 2475 s.

Stopped because the battery voltage reached Vmin = 2.9 V



Simulation result preview:

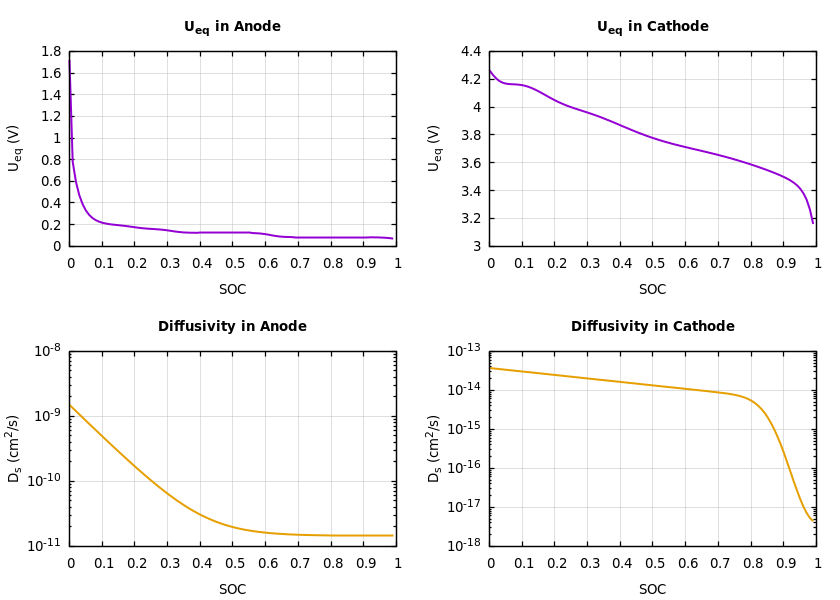

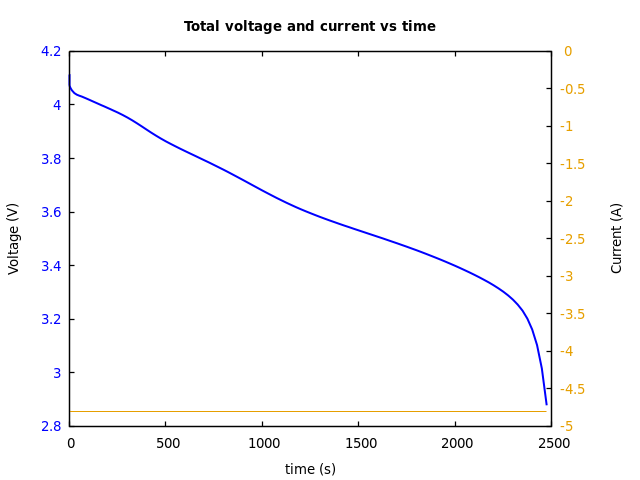

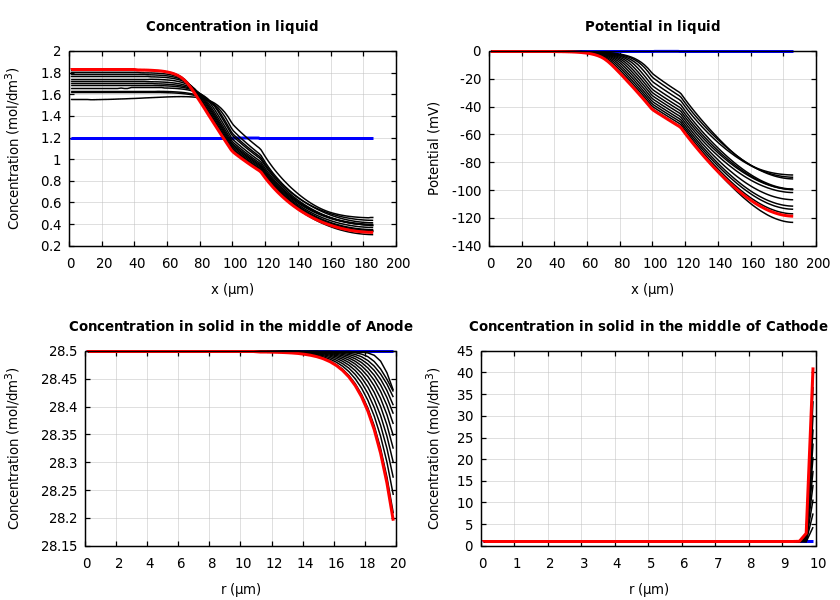

Voltage and currents Concentrations and potentials Parameters


Download all simulation results:

data_and_plt_files.zip




The zip-file contains text data-files with the simulation results (voltages, currents, concentrations of Li ions, potentials) in a plain text format ready to be imported into any third-party post-processing software (e.g. Microsoft Excel, LibreOffice Calc, MATLAB, etc.).

In addition to the data-files, the zip contains text plt-files that can be used to produce publish ready plots in gnuplot.



➠ Review all parameters & Resubmit the simulation

This will create a new instance of the simulation parameters. The current simulation will be unaffected.
