Job "Fix_trial5_2Gr/NCA1C discharge_253K_EaCathode" status: Finished

Description: Graphite Anode (Ecker et al.) + typical Nickel Cobalt Aluminium (NCA) Cathode Particle Size Cathode 0.5μm　 Anode　5μm Thickness 75μm　100μm Temperature 253K reaction rate constant both ca. an. 0.59 lower conductivity and diffusivity

Job submitted: Sun, 06 Nov 2022 12:23:50 +0000

Job completed: Sun, 06 Nov 2022 12:24:03 +0000

Number of DAEs: 5158 (FV method)

Total (dis)charge time: 1154 s.

Stopped because the battery voltage reached Vmin = 2.9 V



Simulation result preview:

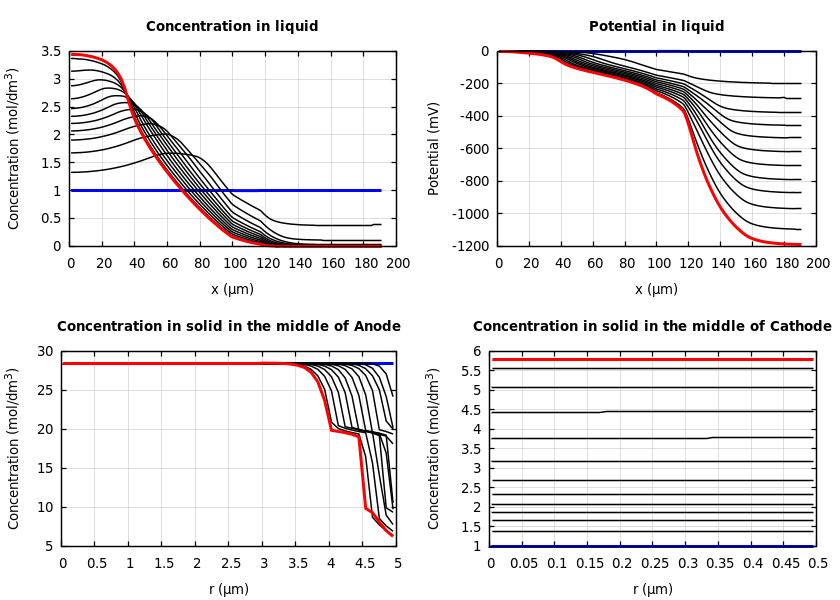

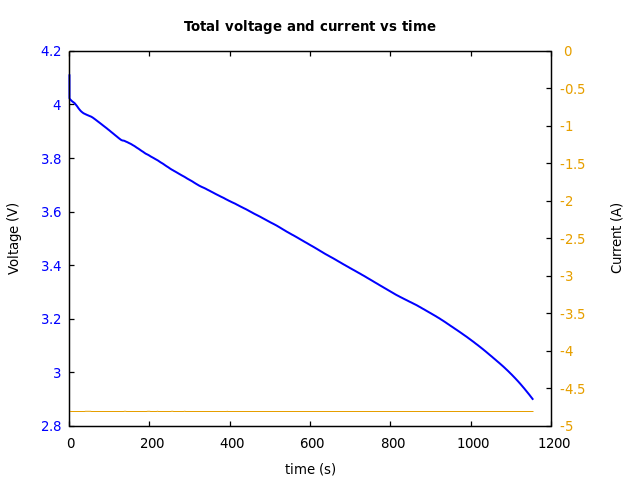

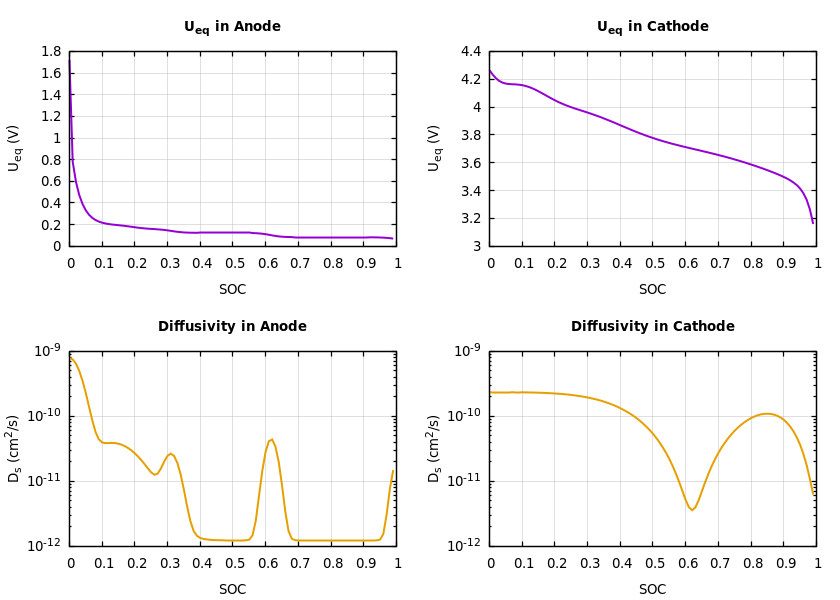

Voltage and currents Concentrations and potentials Parameters


Download all simulation results:

data_and_plt_files.zip




The zip-file contains text data-files with the simulation results (voltages, currents, concentrations of Li ions, potentials) in a plain text format ready to be imported into any third-party post-processing software (e.g. Microsoft Excel, LibreOffice Calc, MATLAB, etc.).

In addition to the data-files, the zip contains text plt-files that can be used to produce publish ready plots in gnuplot.



➠ Review all parameters & Resubmit the simulation

This will create a new instance of the simulation parameters. The current simulation will be unaffected.
